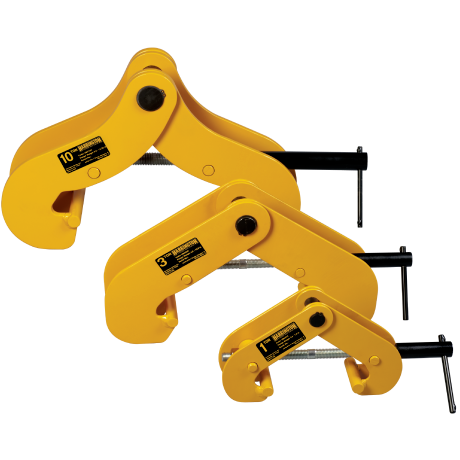

UBC UNIVERSAL BEAM CLAMP

Harrington's UBC beam clamp can be used as a temporary anchor point or as a below-the-hook device. You’ll have peace of mind knowing the secure clamp uses proven lock-nut protection to rule out loosening due to vibrations. Safe and functional, our UBC is also designed with a wide adjustable-jaw opening and both a left- and right-hand clamp screw for quick operation.

CAPACITY

1-10 Ton

COMPLIANCE

Meets ASME BTH-1, ASME B30.20 and complies with portions of ASME B30.16 for use with manual and powered hoists Design factor minimum of 5:1 per ASME B30.16 requirements BODY Lightweight portable design Made in the USA

OPERATION

Jaw opening adjusts for a wide range of tapered or flat flanged beams Left and right-hand clamp screw allows for a quick clamping and unclamping for use with manual and powered hoists

HARDWARE

Lock nut feature resists loosening to improve secure clamping Built-in suspension pin for low headroom

APPLICATIONS

Industrial and construction lifting applications Overhead lifting and vertical rigging operations Holding and positioning beams for construction

OPTIONS

Suspender for perpendicular mounting and for over-sized hooks
