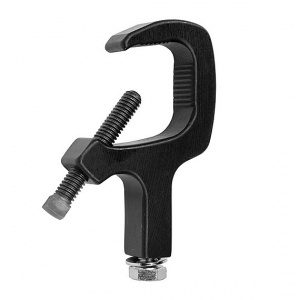

Micro-Clamp
The Micro Clamp is ideal for hanging miniature fixtures like MR-16’s onto a small pipe or tube. Made from high tensile aircraft aluminum. Solid design grips pipe with micro grooves, has spring loaded pan adjustment, and has 5/16" fasteners. Available in black anodized, or polished aluminum finishes.
Please note that the old Polished Version MMChas been replaced by the MMM.
Minimum Size
3/8" pipe, .675" OD
Maximum Size
1" pipe, 1.315" OD
Safe Vertical Working Load
125 lb 55kg
Hardware
5/16″ × 3/4" long hex head Grade 5 Bolt
5/16″ × 2″ long square head case hardened set screw
Belleville spring washer.
Dimensions
3.85" Tall x 2.5" wide x .625" thick
Weight: 3.2 oz
Case Quantities: 48
